Replacing an e-ink screen

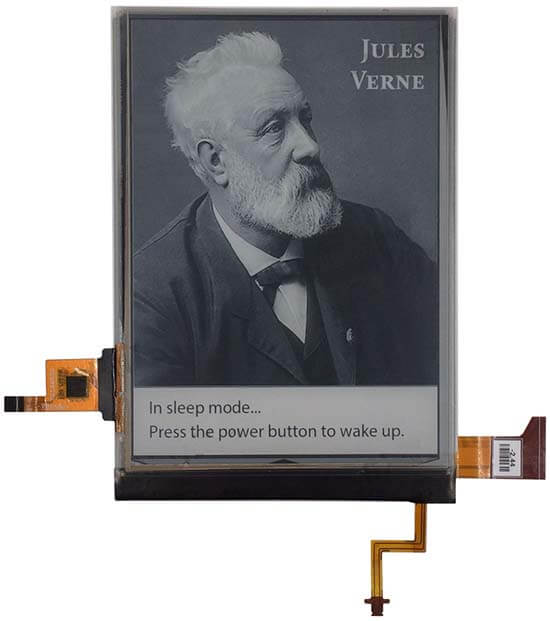

E-ink screen
Marking displays E-ink
Marking displays E-ink

Remember that the replacement screen e-book is hard work and if you are not confident in their abilities, it is best to contact your service center. The authors are not responsible for your actions in implementing the recommendations written on the page.

Before replacing the screen to make out an e-book, take off her old (damaged) screen and find on a flexible cable marking model. This marking is necessary to order a new e-ink screen. You can learn how to decode the marking here. Just enter the screen model in the search box of any search engine and choose a favourite shop spare parts.

If the shell halves are held reader to snap, leaving no scratches on them, instead of a screwdriver Expand the joint between the plastic card. After the back cover is opened to disconnect and remove the battery. Next, the loosen connector lock loop flexible display by hooking on both sides of a thin screw driver. Now disable the ribbon cable from the connector. Then, the printed circuit board can be removed for access to the display.

In some models of electronic readers the display is glued tocircuit board and it has to literally "scrub away" bit by bit. Shards of broken glass screen are very acute and thin. It is better to use thin gloves when you are working, so as not to cut your hands.

Before installing the new e-Ink display with base concrete must be removed all the broken glass, dust and other foreign objects. Any piece of glass or even a grain of sand that gets between the main circuit board unit and the screen can cause it to faults again.

Please always remember that the e-ink screen is very thin and fragile and even small deformations it breaks down.



Connector E-ink display with put on and off trail

Every batch of screens has a residual charge compensation voltage VCON, which is from 1.00 to 2.5 V. The required value of the voltage is indicated on the screen in a separate loop tag (look at the upper photo). If after installing the new display the screen is not clean and there's a big amount of "rubbish" you've to regulate the voltage of VCON. In some models of e-books is a resistor on the board of the device for regulating it, in other models is is done programmatically with a help of special utilities.

If the voltage of VCON on the tag of new screen is different from the old one less than on 0.3 V, probably, regulating won't be necessary.

It's important to know, that some manufacturers of e-books in different series of devices can install different models of screens. Before ordering the screen disassemble your reader and verify in the valdity of data of the table. It's necessary!

Be attentive when you order a new screen as displays with additional functions of backlight and sensor have the same markings as displays without these functions. The only difference is the appearance - the number of flexible cables. Compare the photo in the site of the shop with the screen of your e-book.

You can learn more about the purpouse and location of flexible cables here.

The table of models of E-ink screens, which are used more often.



Mo­del of e-rea­derIn­struc­ti­on of dis­as­semb­lingDis­play mar­kingDi­ago­nal, inchType of scre­en, Re­so­lu­tionImgBuy
TextVi­deo
AMAZON KINDLE 3 Wi-Fi    ED060SC7(LF)6E-ink Pearl 600 x 800
AMAZON KINDLE 4 Special offer        ED060SCF(LF)6E-ink Pearl 600 x 800
AMAZON KINDLE 5 Special offer    ED060SCG(LF)6E-ink Pearl 600 x 800
ED060SCN(LF)6E-ink Pearl 600 x 800
AMAZON KINDLE 7 Special offer        ED060SCP(LF) C1-556E-ink Pearl 600 x 800
AMAZON KINDLE DX    ED097OC4(LF)9.7E-ink Pearl 825 x 1200
AMAZON KINDLE Paperwhite        ED060XC3(LF)6E-ink Pearl HD 758 x 1024
AMAZON KINDLE Paperwhite 2013    ED060XD4(LF) C16E-ink Carta 758 x 1024
AMAZON KINDLE Paperwhite 2015        ED060KD1(LF)6E-ink Carta HD 1072 x 1448
AMAZON KINDLE Touch Special Offer    ED060SCG(LF)6E-ink Pearl 600 x 800
AMAZON KINDLE Voyage        30-0010396E-ink Carta HD 1072 x 1448
Barnes and Noble GlowLight Plus    ED060KC1(LF) 6E-ink Carta HD 1072 x 1448
Barnes and Noble NOOK GlowLight    ED060XG2(LF)6E-ink Pearl HD 758 x 1024
Barnes and Noble NOOK Simple Touch        ED060SCE(LF)6E-ink Pearl 600 x 800
Barnes and Noble NOOK with GlowLight        ED060SCE(LF) H16E-ink Pearl 600 x 800
Bookeen Cybook Muse Essential    ED060XD6(LF)6E-ink Carta 758 x 1024
Bookeen Cybook Muse FrontLight    ED060XD4(LF) C16E-ink Carta 758 x 1024
Bookeen Cybook Odissey 2013 Edition    ED060SCM(LF)6E-ink Pearl 600 x 800
Bookeen Cybook Odissey HD Frontlight    ED060XH2(LF)6E-ink Pearl HD 758 x 1024
Bookeen Cybook OpusED050SC3(LF)5VIZPLEX 600 x 800
DNS AirBook EB603ED060SC7(LF)6E-ink Pearl 600 x 800
Digma E626ED060XC5(LF)6E-ink Pearl HD 758 x 1024
Digma E627    ED060XC3(LF)6E-ink Pearl HD 758 x 1024
Digma E628    ED060SCE(LF)6E-ink Pearl 600 x 800
ED060SCN(LF)6E-ink Pearl 600 x 800
Digma E629    ED060XD4(LF) T1-006E-ink Carta 758 x 1024
Digma E631ED060XC3(LF)6E-ink Pearl HD 758 x 1024
Digma E632ED060XD4(LF) T1-006E-ink Carta 758 x 1024
Digma R655        ED060XC5(LF)6E-ink Pearl HD 758 x 1024
Digma R657ED060XC3(LF)6E-ink Pearl HD 758 x 1024
Digma R658ED060SCN(LF)T16E-ink Pearl 600 x 800
Digma R659ED060XD4(LF)6E-ink Carta 758 x 1024
ED060XC3(LF)6E-ink Pearl HD 758 x 1024
Digma R660    ED060XC5(LF)6E-ink Pearl HD 758 x 1024
ED060XC9(LF)6E-ink Pearl HD 758 x 1024
Digma S676ED060XD4(LF) C16E-ink Carta 758 x 1024
Digma e5ED050SC3(LF)5VIZPLEX 600 x 800
Digma e501ED050SC3(LF)5VIZPLEX 600 x 800
Digma e6ED060SC4(LF)6VIZPLEX 600 x 800
Digma e600LB060S01-RD026VIZPLEX 600 x 800
Digma e601hdLB060X01-RD016E-ink Pearl HD 758 x 1024
Digma e605        ED060SC7(LF)6E-ink Pearl 600 x 800
ED060SCE(LF)6E-ink Pearl 600 x 800
Digma e625        ED060SC7(LF)6E-ink Pearl 600 x 800
Digma e64mED060XD4(LF) T1-006E-ink Carta 758 x 1024
Digma e654    ED060SCT(LF)6E-ink Carta 800 x 600
Digma e65gED060XC3(LF)6E-ink Pearl HD 758 x 1024
Digma e6DGED060XC3(LF)6E-ink Pearl HD 758 x 1024
Digma q600    ED060SC4(LF)6VIZPLEX 600 x 800
Digma r60gED060XG1(LF)6E-ink Pearl HD 758 x 1024
Digma r63SED060SCT(LF)T16E-ink Carta 800 x 600
Digma r663ED060XG1(LF)6E-ink Pearl HD 758 x 1024
Digma r67MED060XC9(LF)6E-ink Pearl HD 758 x 1024
Digma s602wLB060X01-RD016E-ink Pearl HD 758 x 1024
Digma s605ED060XC5(LF)6E-ink Pearl HD 758 x 1024
Digma s605fLB060X02-RD016E-ink FLEX 758 x 1024
Digma s665ED060XC3(LF)6E-ink Pearl HD 758 x 1024
Digma s675ED060XC3(LF)6E-ink Pearl HD 758 x 1024
Digma t635    ED060XC5(LF)6E-ink Pearl HD 758 x 1024
Digma t645ED060XC5(LF)6E-ink Pearl HD 758 x 1024
Gmini Magic Book A6LHDED060XD4(LF) C16E-ink Carta 758 x 1024
Gmini Magic Book C6HDED060XC5(LF)6E-ink Pearl HD 758 x 1024
Gmini Magic Book C6LHD    ED060XG1(LF)6E-ink Pearl HD 758 x 1024
Gmini Magic Book M6FHDLB060X01-RD016E-ink Pearl HD 758 x 1024
Gmini Magic Book M6HDED060XG1(LF)6E-ink Pearl HD 758 x 1024
Gmini Magic Book P60ED060SC7(LF)6E-ink Pearl 600 x 800
Gmini Magic Book R6HD    ED060XC5(LF)6E-ink Pearl HD 758 x 1024
Gmini Magic Book R6LED060SCE(LF) H16E-ink Pearl 600 x 800
Gmini Magic Book S6HD    ED060XC3(LF)6E-ink Pearl HD 758 x 1024
ED060XD4(LF) T1-006E-ink Carta 758 x 1024
Gmini Magic Book W6HDED060XC3(LF)6E-ink Pearl HD 758 x 1024
Gmini Magic Book Z6    ED060SC7(LF)6E-ink Pearl 600 x 800
Gmini Magic Book Z6HD    ED060XC5(LF)6E-ink Pearl HD 758 x 1024
IRIVER STORYED060SC4(LF)6VIZPLEX 600 x 800
IRIVER STORY HD    LB060X01-RD016E-ink Pearl HD 758 x 1024
Kobo Aura    ED060XH3(LF)6E-ink Pearl HD 758 x 1024
Kobo Aura Edition 2ED060XH8(LF)6E-ink Carta 758 x 1024
Kobo Aura H2O    ED068OG1(LF)6.8E-ink Pearl HD 1080 x 1440
Kobo Aura HD    ED068TG1(LF)6.8E-ink Carta 1080 x 1440
Kobo Aura OneED078KC1(LF)7.8E-ink Carta HD 1404 x 1872
Kobo Glo        ED060XG1(LF)6E-ink Pearl HD 758 x 1024
Kobo Glo HD    ED060KG1(LF)6E-ink Carta HD 1072 x 1448
Kobo Mini    ED050SC3(LF)5VIZPLEX 600 x 800
Kobo Touch    ED060SCE(LF)6E-ink Pearl 600 x 800
Lbook V3+    ED060SC4(LF)6VIZPLEX 600 x 800
Lbook V3+ light    ED060SC4(LF)6VIZPLEX 600 x 800
Lbook V5        ED050SC3(LF)5VIZPLEX 600 x 800
Lbook V5 light        ED050SC3(LF)5VIZPLEX 600 x 800
Lbook V60    ED060SC8(LF)6E-ink Pearl 600 x 800
ONEXT Onext Touch&Read 001    A0608E026SIPIX 600 x 800
Onyx BOOX AmundsenED060XD4(LF) T1-006E-ink Carta 758 x 1024
Onyx BOOX Bering 3ED060XD4(LF)6E-ink Carta 758 x 1024
Onyx BOOX C63L        ED060XH2(LF)6E-ink Pearl HD 758 x 1024
Onyx BOOX C63M        ED060XC3(LF)6E-ink Pearl HD 758 x 1024
Onyx BOOX C67ML DarvinED060XD4(LF) T1-006E-ink Carta 758 x 1024
ED060XH7(LF)6E-ink Carta 758 x 1024
Onyx BOOX C67ML Magellan 2    ED060XC3(LF) C1-006E-ink Pearl HD 758 x 1024
ED060XD4(LF) T1-006E-ink Carta 758 x 1024
Onyx BOOX C67SM BERING 2ED060XC3(LF)6E-ink Pearl HD 758 x 1024
Onyx BOOX C67SML ColumbusED060XG1(LF)6E-ink Pearl HD 758 x 1024
Onyx BOOX CaesarED060XH7(LF)6E-ink Carta 758 x 1024
ED060XD4(LF)6E-ink Carta 758 x 1024
Onyx BOOX Caesar 2ED060XCD(LF)6E-ink Carta 758 x 1024
Onyx BOOX Caesar 3ED060XCD(LF)6E-ink Carta 758 x 1024
Onyx BOOX Cleopatra 2ED068TG1(LF)6.8E-ink Carta 1080 x 1440
Onyx BOOX Cleopatra 3ED068TH1(LF)6.8E-ink Carta 1080 x 1440
Onyx BOOX Columbus 2ED060XD4(LF) T1-006E-ink Carta 758 x 1024
ED060XCD(LF)6E-ink Carta 758 x 1024
Onyx BOOX Darvin 2ED060KC1(LF) 6E-ink Carta HD 1072 x 1448
Onyx BOOX Darvin 6ED060KD1(LF)6E-ink Carta HD 1072 x 1448
Onyx BOOX James CookED060SCG(LF)6E-ink Pearl 600 x 800
ED060SCT(LF)6E-ink Carta 800 x 600
Onyx BOOX M96 ZeusED097OC4(LF)9.7E-ink Pearl 825 x 1200
ED097TC1(LF)9.7E-ink Pearl 825 x 1200
Onyx BOOX Monte CristoED060KD1(LF)6E-ink Carta HD 1072 x 1448
Onyx BOOX PrometheusED097OD2(LF)9.7E-ink Pearl 825 x 1200
Onyx BOOX Robinson CrusoeED060KD1(LF)6E-ink Carta HD 1072 x 1448
Onyx BOOX Robinson Crusoe 2ED060KD1(LF)6E-ink Carta HD 1072 x 1448
Onyx BOOX Vasco da GamaED060XH7(LF)6E-ink Carta 758 x 1024
Onyx BOOX i62M Victoria    ED060XC5(LF)6E-ink Pearl HD 758 x 1024
Onyx BOOX i62ML    ED060XG1(LF)6E-ink Pearl HD 758 x 1024
ED060XCD(LF)6E-ink Carta 758 x 1024
Onyx BOOX i63M NEWTON    ED060XG3(LF)6E-ink Carta 758 x 1024
Onyx BOOX i63ML KopernikED060XG1(LF)6E-ink Pearl HD 758 x 1024
Onyx BOOX i63ML MaxwellED060XG1(LF)6E-ink Pearl HD 758 x 1024
Onyx BOOX i63SL KeplerED060XG1(LF)6E-ink Pearl HD 758 x 1024
Onyx BOOX i86ML Moby DickED080TC1(LF)8E-ink Pearl HD 1200 x 1600
Onyx BOOX Миклухо-МаклайED060XD4(LF)6E-ink Carta 758 x 1024
Pocketbook 301        ED060SC4(LF)6VIZPLEX 600 x 800
Pocketbook 302ED060SC4(LF)6VIZPLEX 600 x 800
Pocketbook 360 Plus New    ED050SC3(LF)5VIZPLEX 600 x 800
Pocketbook 515 Mini    ED050SC5(LF)5E-ink Pearl 600 x 800
ED050SU3(LF)5VIZPLEX 600 x 800
Pocketbook 611 Basic        ED060SC4(LF)6VIZPLEX 600 x 800
ED060SC9(LF)6VIZPLEX 600 x 800
Pocketbook 613 Basic New        ED060SC4(LF)6VIZPLEX 600 x 800
ED060SC8(LF)6E-ink Pearl 600 x 800
Pocketbook 614 Basic 2    ED060SCE(LF)6E-ink Pearl 600 x 800
ED060SCG(LF)6E-ink Pearl 600 x 800
Pocketbook 614 Basic 3 PlusED060SCT(LF)6E-ink Carta 800 x 600
Pocketbook 615    ED060XD4(LF)6E-ink Carta 758 x 1024
ED060XCD(LF)6E-ink Carta 758 x 1024
Pocketbook 616ED060XCD(LF)6E-ink Carta 758 x 1024
Pocketbook 625 Basic Touch 2ED060SD1(LF)6E-ink Carta 800 x 600
Pocketbook 627ED060XH7(LF)6E-ink Carta 758 x 1024
ED060XCD(LF)U2-C7Y6E-ink Carta 758 x 1024
Pocketbook 628    ED060XCD(LF)U2-C7Y6E-ink Carta 758 x 1024
Pocketbook 630 Fashion    ED060XC3(LF) C1-006E-ink Pearl HD 758 x 1024
Pocketbook 631 Touch HDED060KG1(LF)6E-ink Carta HD 1072 x 1448
Pocketbook 632ED060KH6(LF)6E-ink Carta HD 1072 x 1448
Pocketbook Aqua 640    ED060SCE(LF)T1-06E-ink Pearl 600 x 800
Pocketbook Basic Touch 624    ED060SCE(LF)T1-06E-ink Pearl 600 x 800
Pocketbook Ink Pad 3 PB740ED078KC1(LF)7.8E-ink Carta HD 1404 x 1872
ED078KH4(LF)T17.8E-ink Carta HD 1404 x 1872
Pocketbook Ink Pad 840    ED080TC1(LF)8E-ink Pearl HD 1200 x 1600
Pocketbook Pro 602    ED060SC4(LF)6VIZPLEX 600 x 800
Pocketbook Pro 603    ED060SC4(LF)6VIZPLEX 600 x 800
Pocketbook Pro 612    ED060SC4(LF)6VIZPLEX 600 x 800
Pocketbook Pro 902    ED097OC1(LF)9.7VIZPLEX 825 x 1200
Pocketbook Pro 903    ED097OC1(LF)9.7VIZPLEX 825 x 1200
Pocketbook Pro 912    ED097OC1(LF)9.7VIZPLEX 825 x 1200
Pocketbook Touch 622    ED060SCM(LF)6E-ink Pearl 600 x 800
Pocketbook Touch Lux 2 626    ED060XC3(LF) C1-006E-ink Pearl HD 758 x 1024
Pocketbook Touch Lux 3 626 PlusED060XD4(LF)6E-ink Carta 758 x 1024
ED060XH7(LF)6E-ink Carta 758 x 1024
Pocketbook Touch Lux 623    ED060XH2(LF)6E-ink Pearl HD 758 x 1024
Pocketbook ULTRA 650        ED060XG3(LF)6E-ink Carta 758 x 1024
Prestigio PER3664BC        OPM060A16O-paper 600 x 800
OPM060A26O-paper 600 x 800
Prestigio PER5664BC    ED060XC3(LF)6E-ink Pearl HD 758 x 1024
Prology Latitude I-602    ED060SC7(LF)6E-ink Pearl 600 x 800
Qumo Libro    LB060S02-RD016VIZPLEX 600 x 800
Qumo Libro II    LB060S02-RD016VIZPLEX 600 x 800
Qumo Libro Lux IIED060SCE(LF) H16E-ink Pearl 600 x 800
Reader Book 1ED060XC3(LF)6E-ink Pearl HD 758 x 1024
Ritmix RBK-200OPM043A24.3O-paper 600 x 800
Ritmix RBK-615ED060XD4(LF) T1-006E-ink Carta 758 x 1024
Ritmix RBK-675FLED060XD4(LF)6E-ink Carta 758 x 1024
Ritmix RBK-676FLED060XCD(LF)6E-ink Carta 758 x 1024
Ritmix RBK-700ED060SC4(LF)6VIZPLEX 600 x 800
Ross&Moor Luna RME-601ED060SC4(LF)6VIZPLEX 600 x 800
RoverBook Alpha    ED060XC3(LF)6E-ink Pearl HD 758 x 1024
SONY PRS-300    LB050S01-RD015VIZPLEX 600 x 800
SONY PRS-350    LB050S01-RD025VIZPLEX 600 x 800
SONY PRS-500ED060SC4(LF)6VIZPLEX 600 x 800
SONY PRS-505    ED060SC4(LF)6VIZPLEX 600 x 800
SONY PRS-600        ED060SC4(LF)6VIZPLEX 600 x 800
SONY PRS-650    ED060SC9(LF)6VIZPLEX 600 x 800
SONY PRS-700    ED060SC4(LF)6VIZPLEX 600 x 800
SONY PRS-900    LB071WS1-RD017.1E-ink Pearl 600 x 1024
SONY PRS-950LB071WS1-RD017.1E-ink Pearl 600 x 1024
SONY PRS-T1        ED060SCE(LF)6E-ink Pearl 600 x 800
SONY PRS-T2    ED060SCE(LF)6E-ink Pearl 600 x 800
SONY PRS-T3        ED060XC5(LF)6E-ink Pearl HD 758 x 1024
Tesla Litera FL 6.0ED060XD4(LF)6E-ink Carta 758 x 1024
Texet TB-116    ED060SC4(LF)6VIZPLEX 600 x 800
Texet TB-116FL    ED060XG1(LF)6E-ink Pearl HD 758 x 1024
Texet TB-126OPM060A16O-paper 600 x 800
Texet TB-136OPM060A16O-paper 600 x 800
Texet TB-138OPM080A18O-paper 758 x 1024
Texet TB-146ED060SC7(LF)6E-ink Pearl 600 x 800
ED060SCL(LF)6VIZPLEX 600 x 800
Texet TB-156ED060SCN(LF)6E-ink Pearl 600 x 800
Texet TB-166ED060SCE(LF)6E-ink Pearl 600 x 800
Texet TB-176FLOPM060A16O-paper 600 x 800
Texet TB-216ED060SC4(LF)6VIZPLEX 600 x 800
Texet TB-416    OPM060A16O-paper 600 x 800
OPM060A26O-paper 600 x 800
Texet TB-416FL    OPM060A26O-paper 600 x 800
Texet TB-418FLOPM080A18O-paper 758 x 1024
Texet TB-436    OPM043A24.3O-paper 600 x 800
Texet TB-504OPM043A24.3O-paper 600 x 800
Texet TB-506    OPM060A26O-paper 600 x 800
Texet TB-526FLOPM060B56O-paper 600 x 800
Texet TB-536FLOPM060B56O-paper 600 x 800
Texet TB-566OPM060BA6O-paper 600 x 800
ViewSonic VEB620ED060SC4(LF)6VIZPLEX 600 x 800
Wexler E5001        LB050S01-RD025VIZPLEX 600 x 800
Wexler E6001    ED060SC4(LF)6VIZPLEX 600 x 800
Wexler E6002    ED060SC7(LF)6E-ink Pearl 600 x 800
Wexler E6003ED060SC7(LF)6E-ink Pearl 600 x 800
Wexler E6005ED060SC7(LF)6E-ink Pearl 600 x 800
Wexler E6007ED060SCE(LF)T1-06E-ink Pearl 600 x 800
Wexler Flex One    LB060X02-RD016E-ink FLEX 758 x 1024





Next






e-ink-reader.ru


Share

What to read?

Linwood Barclay "No Time For Goodbye". On the morning she will never forget, suburban teenager Cynthia Archer awakes with a nasty hangover and a feeling she is going to have an even nastier confrontation with her mom and dad. But when she leaves her bedroom, she discovers the house is empty, with no sign of her parents or younger brother Todd. In the blink of an eye, without any explanation, her family has simply disappeared. Twenty-five years later Cynthia is still haunted by unanswered questions...

What to read?

Dmitry Glukhovsky "Metro 2034". The basis of two bestselling computer games Metro 2033 and Metro Last Light, the Metro books have put Dmitry Glukhovsky in the vanguard of Russian speculative fiction alongside the creator of Night Watch, Sergei Lukyanenko. A year after the events of METRO 2033 the last few survivors of the apocalypse, surrounded by mutants and monsters, face a terrifying new danger as they hang on for survival in the tunnels of the Moscow Metro...

Jean Kwok "Girl in Translation". When Kimberly Chang and her mother emigrate from Hong Kong to Brooklyn squalor, she quickly begins a secret double life: exceptional schoolgirl during the day, Chinatown sweatshop worker in the evenings. Disguising the more difficult truths of her life-like the staggering degree of her poverty, the weight of her family's future resting on her shoulders, or her secret love for a factory boy who shares none of her talent or ambition-Kimberly learns to constantly translate not just her language but herself back and forth between the worlds she straddles....

To find these books, check out the "e-library".


See also:
